Outdoor Enclosure for RainMachine Touch HD or Mini-8

June 10, 2015, by admin

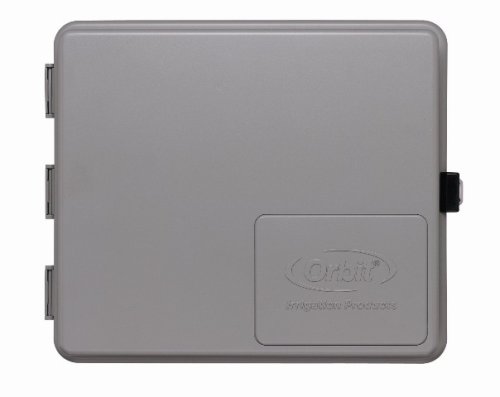

Orbit 57095 Sprinkler System Weather Resistant Outdoor Mounted Control Timer Box Cover Orbit 57095 Sprinkler System Weather Resistant Outdoor Mounted Control Timer Box Cover
Buy it from Amazon.com



RainMachine Mini-8

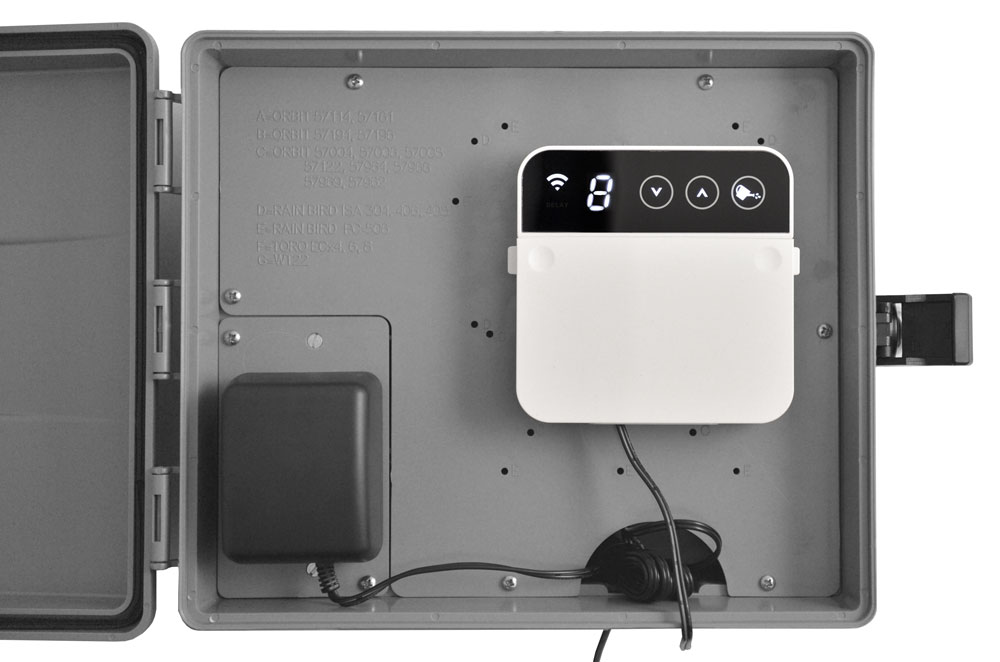

RainMachine Mini-8 mounted inside of Orbit 57095 Sprinkler System Weather Resistant Outdoor Mounted Control Timer Box Cover

Instructions:

- Using a 1/8" drill bit, drill one or two hole into the plastic hole as desired.



Installation Tips:

- Please install box in a place that is sheltered from long periods of direct Sun exposure.

- Avoid installing unit in South or West facing walls in order to avoid direct sunlight exposure. Ensure that temperature inside the box does not exceed 125F (50C) on daily basis as this can shorten the Rainmachine operating life due to repeated thermal stress. Occasional temperature excursions up to 150F are tolerated but not recommended.

RainMachine Touch HD

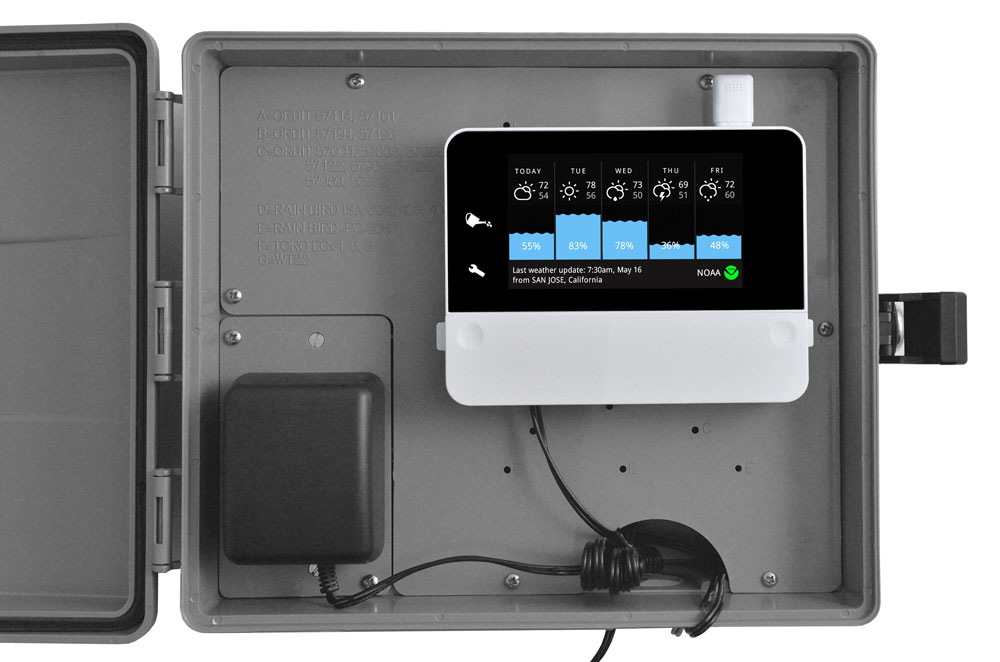

RainMachine Touch HD mounted inside of Orbit 57095 Sprinkler System Weather Resistant Outdoor Mounted Control Timer Box Cover

Instructions:

- Use the drill holes labeled "G".

- The RainMachine provided screws will work.



Installation Tips:

- Please install box in a place that is sheltered from long periods of direct Sun exposure.

- Avoid installing unit in South or West facing walls in order to avoid direct sunlight exposure. Ensure that temperature inside the box does not exceed 125F (50C) on daily basis as this can shorten the Rainmachine operating life due to repeated thermal stress. Occasional temperature excursions up to 150F are tolerated but not not recommended.

- Excessive and repeated moisture accumulation (condensation) could damage electronics, especially in coastal environments. Avoid using our RainMachine Touch device in such outdoor environments as moisture and salt accumulation, in rare occasions, can be harm the touchscreen electronics.
